WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT/COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION CONTROLLED MOTOR VEHICLE.

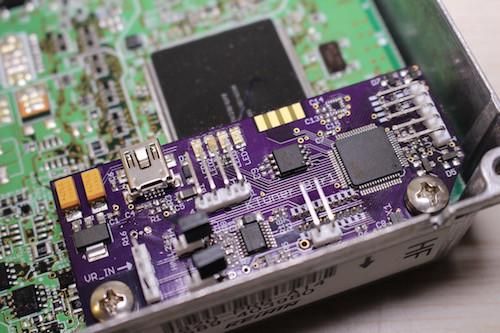

The KTuner Revision 1 End-User board tuning system for use with K series engines allows engine tuning of K series engines by any end user (this is you if you are reading this). The KTuner End-User board system consists of a circuit board that is installed into your ECU along with software for use with the board. The system is tunable via laptop with a simple USB cable connection. This will allow you to reprogram your ECU for performance gains and to get the most from your engine modifications. Many engine basemaps are included with the software to choose from to begin with. You can even start with one of the KTuner Reflash files, then tune or make changes from there as desired. See the links below for features on each application:
What vehicles can this be used on?
- 02-04 RSX/02-05 EP3 with the use of a conversion harness
- K20 and K24 swapped vehicles
- 05-06 RSX Type-S, Base Auto and Manual
- 04-06 TSX (TSX ECU not compatible, requires our KTuner TSX ECU)
- 03-05 Accord Auto and Manual
- 06-07 Accord Drive By Wire Auto and Manual
- 03-06 Element Auto and Manual
A preview of the software is available on the KTuner site here: http://ktuner.com/ktuner-software/
** FREE installation into your ECU when purchased from us **
Installing the KTuner End-User board into the ECU requires professional, surface mount component soldering skills. We HIGHLY recommend you don't attempt the install unless you are very experienced with surface mount soldering. To make sure you have a trouble-free experience with this system, we offer to install the system into your ECU for FREE when purchased from us. This board is designed to be used with any of our HA Motorsports KTuner prepared K series ECU's, or your own ECU if you'd prefer to send yours in for installation (please check at the application links above to make sure your ECU is compatible). For a simple, all in one solution, see our KTuner End-User ECU packages!
Includes:
- One KTuner end user board
- One KTuner end user software license (paired with system). The KTuner software can be downloaded here.
- Pair of KTuner decals
- New USB cable for connecting to the system
- Free installation into customer provided ECU, or into one of our KTuner ready ECU's. See below for information on sending your ECU to us for installation.
Bluetooth option:
The KTuner Rev1 End-User board accepts the KTuner Bluetooth Add-On Module. We can include this with your new KTuner End-User system when you add this to your order.
Tuning with KTuner will require the following:
- KTuner end-user system (this item).
- KTuner ready/socketed K series ECU (see our prepared ECU's, or options for sending your ECU in for installation).
- Jumper harness on some applications (02-04 RSX, 02-05 Civic Si - see application list above).
- Laptop Computer running Windows XP SP3, 7, 8, 8.1, 10, or Windows 11, and at least 1GB RAM or better is recommended.
How does the order process work?
- Select from the drop-down menu if you will send your ECU in for the install, or will be installing yourself.
- Add this item to your online shopping cart.
- - If you will be installing yourself, the shipping you select at checkout will be to ship just the system to you. Simply complete your order and we will ship this to you. IMPORTANT: The warranty on the KTuner board is only valid if installed by an authorized KTuner dealer. If you install the board yourself, your warranty through KTuner will be void.
- - If you will be sending your ECU in for the install, the shipping you select at checkout will be for shipping your ECU back to you after the installation is completed.
- Print out a copy of your order confirmation and include it with your ECU to ship to us if you will have us install this for you.
- If you will be sending in your ECU for the install, pack securely, then ship to us using any shipping method you'd like. You will pay to ship to us wherever you go to ship. Click here for our shipping address.
- We will complete the installation within 1 business day and ship back to you using the return shipping method that you selected when you placed your order.
- Reinstall your ECU into you car and enjoy tuning!
QUESTIONS & ANSWERS
Ask a Question-
Is there any guide/instructions to install the tuner onto the ECU on your own?
The install is straightforward, but requires surface mount component soldering skills. Here's an overview of the install: http://www.ktuner.com/KTunerHelp/hardware_installation_3.htm?ms=AgAABQ%3D%3D&st=MA%3D%3D&sct=MA%3D%3D&mw=MjQw Please note that installing yourself will void the warranty on your KTuner board. To retain warranty, please have installed by an authorized KTuner dealer.
-
I have an 06 rsx type s and got another ecu for an 05 rsx type s as well. Can I send the 05 for the chip and will it be compatible with my 2006 rsx?
Yes, this will work in the 05 ECU and can plug into your 06 RSX. You will want to disable the immobilizer though in your tune/calibration file though unless you have the new ECU programmed to your keys/immobilizer.
-
I have a 05 RSX Type s if I buy this product my Immobilizer would works normally?
If configured properly it can, or you can disable it if desired. All the info on this here: https://www.hamotorsports.com/pages/ktuner-end-user-board-immobilizer-information
Thanks! -
I have an 05 MT Base RSX and was curious if I had to send in my key and immobilizer with the ECU?
ECU only. We don't need the key or immobilizer. Thanks,
-
Dose the k tuner chip come with all the hardware to install in the wiring to be able to run into my laptop
The USB to connect to your laptop is included. If your ECU isn't already socketed for the KTuner board, you will need to add the KTuner headers/socketing kit to your order and solder those into your ECU in order to install. We install this into your provided ECU for free when purchasing the board from us, so we highly recommend shipping your ECU to us for the install, rather than trying to install yourself.
