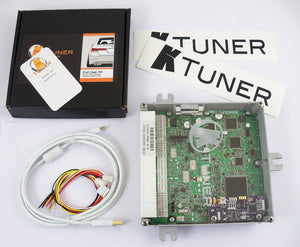

This is our complete KTuner Rev1 end user system with 05-06 RSX PRB ECU package. Will allow simple plug-and-play use. Requires no core, this is a complete out-right purchase of ECU and KTuner system ready to use.
Fits:
- 2005-2006 RSX Type-S
- K20/K24 engine swaps using 05-06 RSX engine harness
Includes:
- HA Motorsports KTuner Ready 05-06 RSX Type-S PRB ECU
- FREE clear ECU lid
- KTuner End User System. (fully installed and tested in ECU)
- USB cable for connecting the ECU to your laptop.
- KTuner software for operating/tuning the ECU. Please download the software here.
What else do I need to use this ECU?
- Laptop computer running Windows XP or newer
- Internet connection when connecting to your ECU for the first time to register your system and setup a KTuner account (free). To see what is involved in setting up your KTuner account, see the KTuner getting started guide here.
Bluetooth option:
The KTuner Rev1 End-User board accepts the KTuner Bluetooth Add-On Module.
What features will I have, and what can be adjusted/tuned using this ECU?
- Real-Time Data-Logging
- Real-Time Tuning
- Adjust for aftermarket injectors, injector sizing
- Ignition and Fuel tables tuning
- VTC Tuning
- VTEC tuning
- Knock tuning
- Adjustable rev-limiter
- Adjustable 2-step/ launch control
- Anti-lag
- Aftermarket MAP sensor support
- Expandable tables for boost
- PWM boost control for use with electronic boost control solenoid
- Boost cut
- VTEC window control
- closed loop control
- disable sensors and OBD2 monitors
- disable immobilizer
- Fuel cut parameters
- Fuel correction parameters
- Ignition correction parameters
- Idle control parameters
- Flex Fuel/E85 support
- 6 programmable outputs (nitrous control, etc)
QUESTIONS & ANSWERS
Ask a Question-
Do you have this for a ep3 with a k24 swap?
This ECU package can be used in an EP3 chassis with K24 engine, but you will need the jumper harness: https://www.hamotorsports.com/products/ktunerjumper
-
I just purchased this recently, haven't installed yet. Will my immobilizer cause any issues? Thanks!
The ECU package is shipped with the immobilizer disabled as we need it disabled for testing the package before shipping. You can either leave it disabled, or enable it and sync the ECU to your immobilizer/keys at your local Acura dealer. More info on the immobilizer in this ECU can be found here: KTuner End-User Board Immobilizer Information
-
Will this work with my k24a2 swap for my 06 dc5 type s?
Yes, no problem. Be sure to use a cable throttle body (not the TSX drive by wire throttle body), and use your K20 crank sensor. Everything else will be straightforward and you can use the KTuner system to tune the new engine set up.
-
Will this work with my 02-04 rsx harness ? I have the vss (02-04) sensor and not the css(05+) sensor
You'd need the jumper harness: https://www.hamotorsports.com/collections/ecu-jumper-harnesses-manual-transmission-vehicles/products/ktunerjumper
along with the KTuner compatible air/fuel sensor: https://www.hamotorsports.com/collections/wideband-gauges/products/primary-o2-sensor-air-fuel-sensor-for-ktuner-applications
Then it will work for you. Thanks,
