This is our complete KTuner Rev1 end user system with 05-06 RSX PND ECU package. Will allow simple plug-and-play use. Requires no core, this is a complete out-right purchase of ECU and KTuner system ready to use.
Fits:
- 2005-2006 RSX base model (please select manual or automatic transmission)

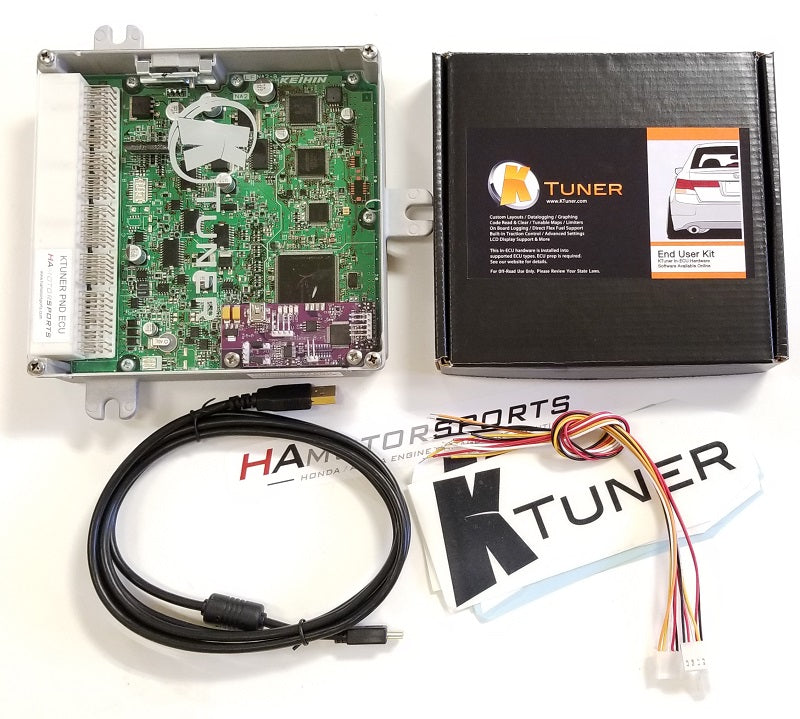

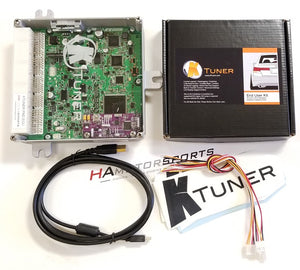

Includes:

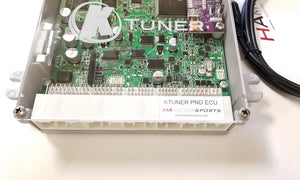

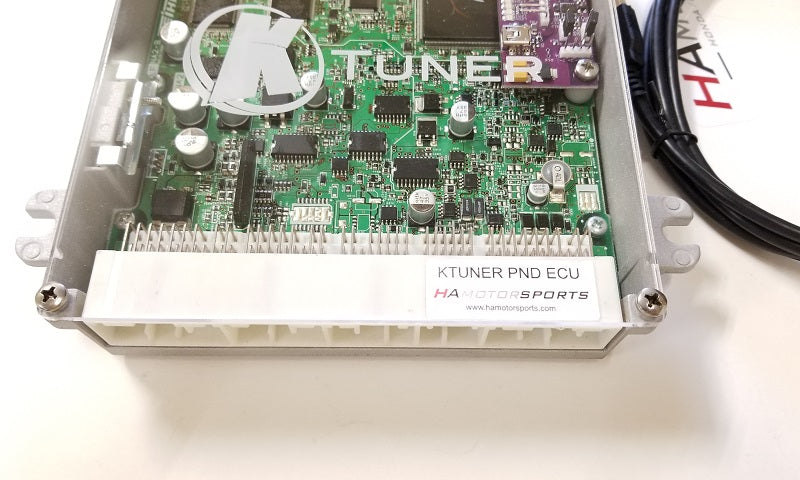

- HA Motorsports KTuner Ready 05-06 RSX Base PND ECU
- FREE clear ECU lid

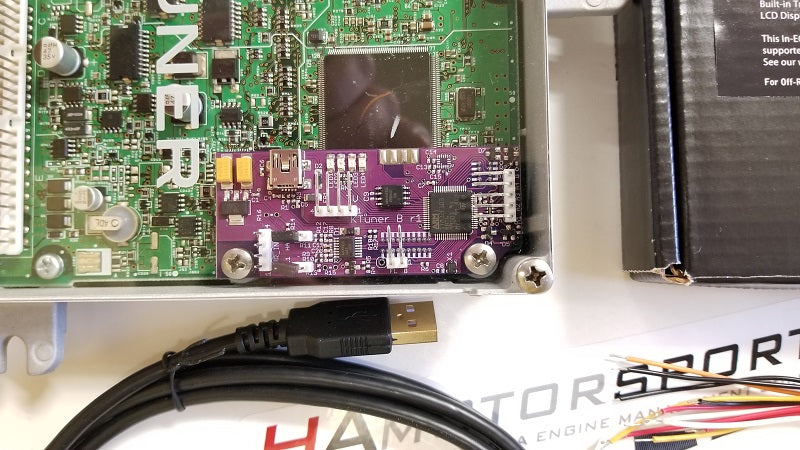

- KTuner End User System. (fully installed and tested in ECU)
- USB cable for connecting the ECU to your laptop.
- KTuner software for operating/tuning the ECU. Please download the software here.
What else do I need to use this ECU?
- Laptop computer running Windows XP or newer
- Internet connection when connecting to your ECU for the first time to register your system and setup a KTuner account (free). To see what is involved in setting up your KTuner account, see the KTuner getting started guide here.
Bluetooth option:
The KTuner Rev1 End-User board accepts the KTuner Bluetooth Add-On Module which allows bluetooth datalogging/sensor display via the TunerView Android App.
Are there any basemaps or calibrations that I can start with?
The Ktuner software allows you to start with the factory calibration or any of the KTuner reflash files (ie: KTuner Reflash #1, etc.) to use as a starting point. From there you can customize or tune as desired.
What features will I have, and what can be adjusted/tuned using this ECU?
- Real-Time Data-Logging
- Real-Time Tuning
- Adjust for aftermarket injectors, injector sizing
- Ignition and Fuel tables tuning
- VTEC/VTC tuning
- Knock tuning
- Adjustable rev-limiter
- Adjustable 2-step/ launch control
- Anti-lag
- Aftermarket MAP sensor support
- expandable tables for boost
- PWM boost control for use with electronic boost control solenoid
- Boost cut
- VTEC window control
- closed loop control
- disable sensors and OBD2 monitors
- disable immobilizer
- fuel cut parameters
- fuel correction parameters
- idle control parameters
- flex-fuel/E85 support
- 6 programmable outputs (nitrous control, etc)
QUESTIONS & ANSWERS
Ask a Question-
So this product along with the 02-04 to 05-06 RSX Auto jumper Harness would allow for tuning on an 03 RSX base Auto? This seems to be the only product that can potentially do this but just wanted to confirm it.
That's correct, along with the KTuner (05-06 RSX) air/fuel sensor: https://www.hamotorsports.com/products/primary-o2-sensor-air-fuel-sensor-for-ktuner-applications
-
I'm trying to find a ECU that will work with my 2006 Acura RSX base model I want to put a aftermarket intake manifold but the base model has a sensor in the intake well this delete that
This ECU has the intake manifold tuning system circuitry just like your stock ECU. If desired, you can disable this within the KTuner software so that you can use an aftermarket intake manifold. Thanks,
-
This unit along with the 02 rsx base auto jumper harness should be all I need to start tuning my 02 rsx base auto?
Correct, as long as you choose the automatic transmission version of this ECU package. You will also need the 05-06 'ktuner' air/fuel ratio sensor: https://www.hamotorsports.com/products/primary-o2-sensor-air-fuel-sensor-for-ktuner-applications
-
Will this work a 2002 Rsx type s
Yes, as long as you use this jumper harness: https://www.hamotorsports.com/collections/ecu-jumper-harnesses-manual-transmission-vehicles/products/ktunerjumper
-
What are those colored wires for
The pigtails are for the additional inputs on the top of the KTuner board. Most setups don't need them, but they are included in case you do.
-
am i able to swap this ktuner/ecu into my automatic 2002 rsx
Yes, use this ECU package along with our KTuner auto jumper harness: https://www.hamotorsports.com/collections/ecu-jumper-harnesses-automatic-transmission-vehicles/products/02-04-rsx-auto-to-05-06-rsx-auto-ecu-jumper-harness and the KTuner compatible air/fuel sensor: https://www.hamotorsports.com/collections/ktuner/products/primary-o2-sensor-air-fuel-sensor-for-ktuner-applications
Thanks,
